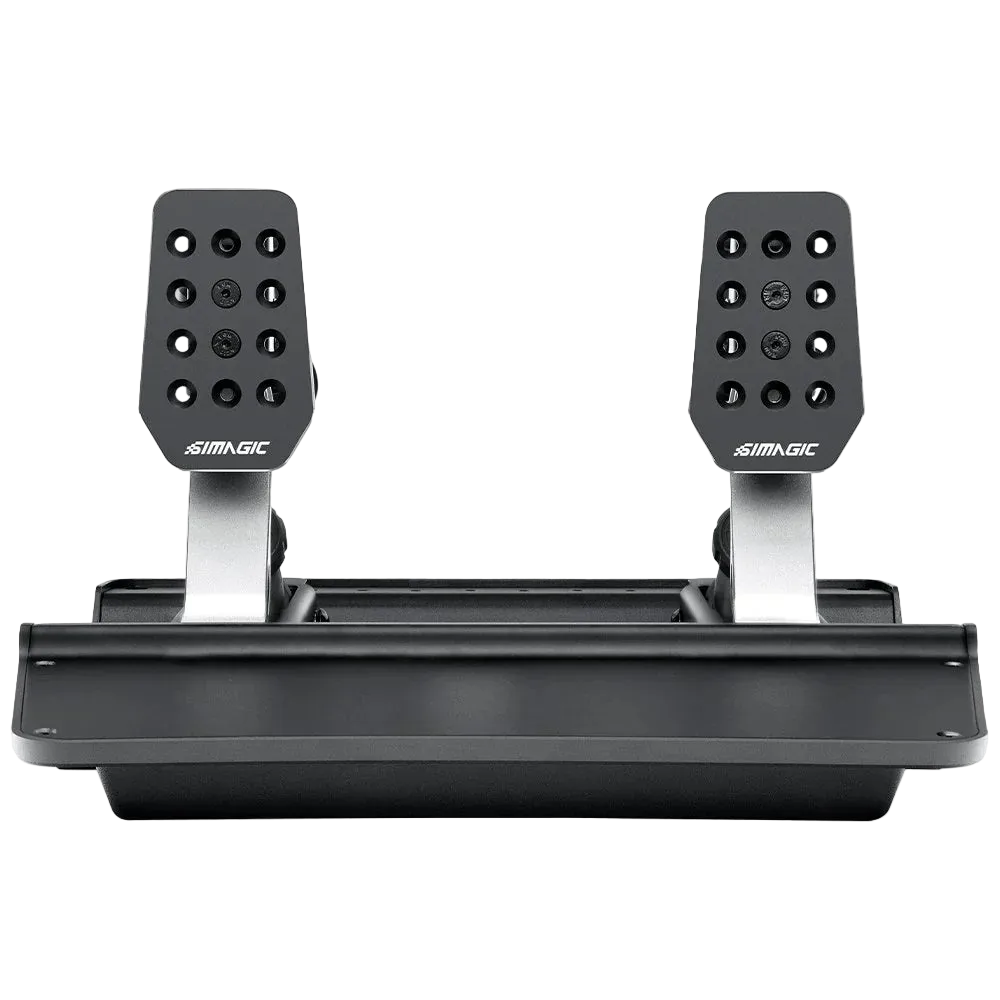

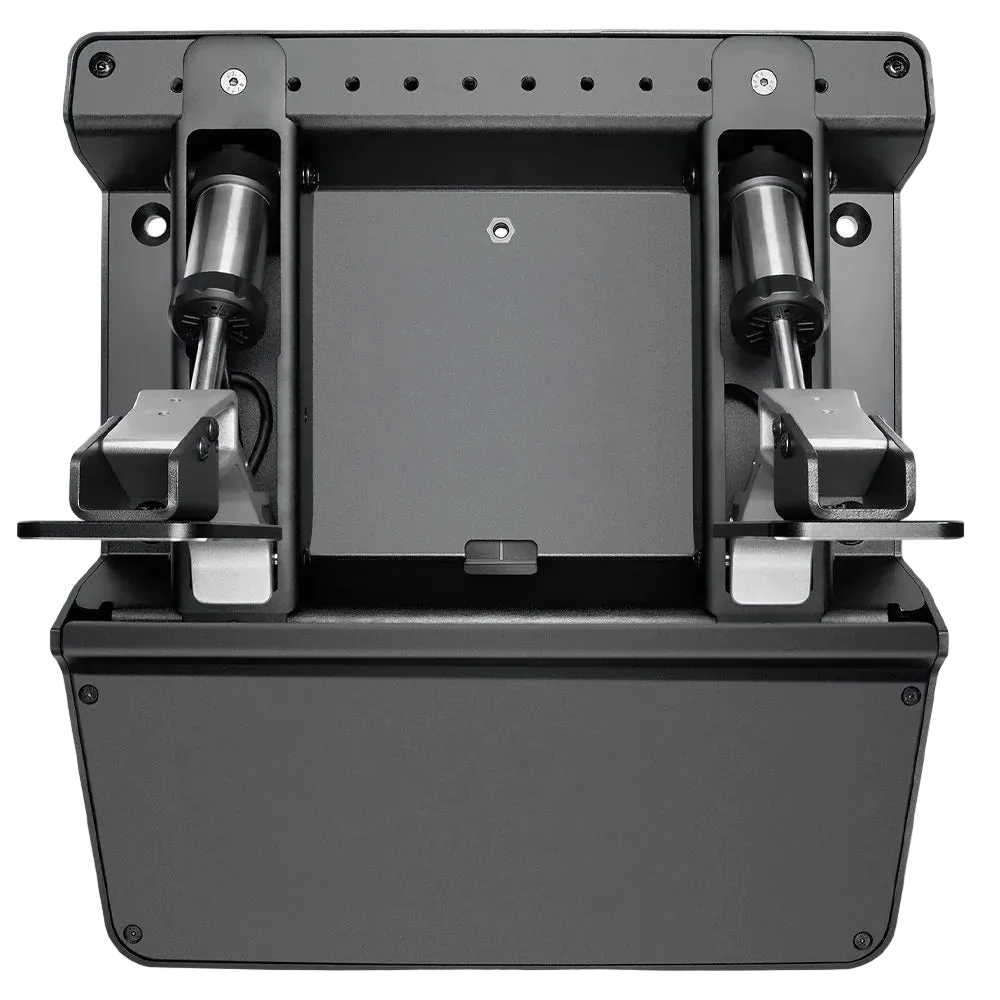

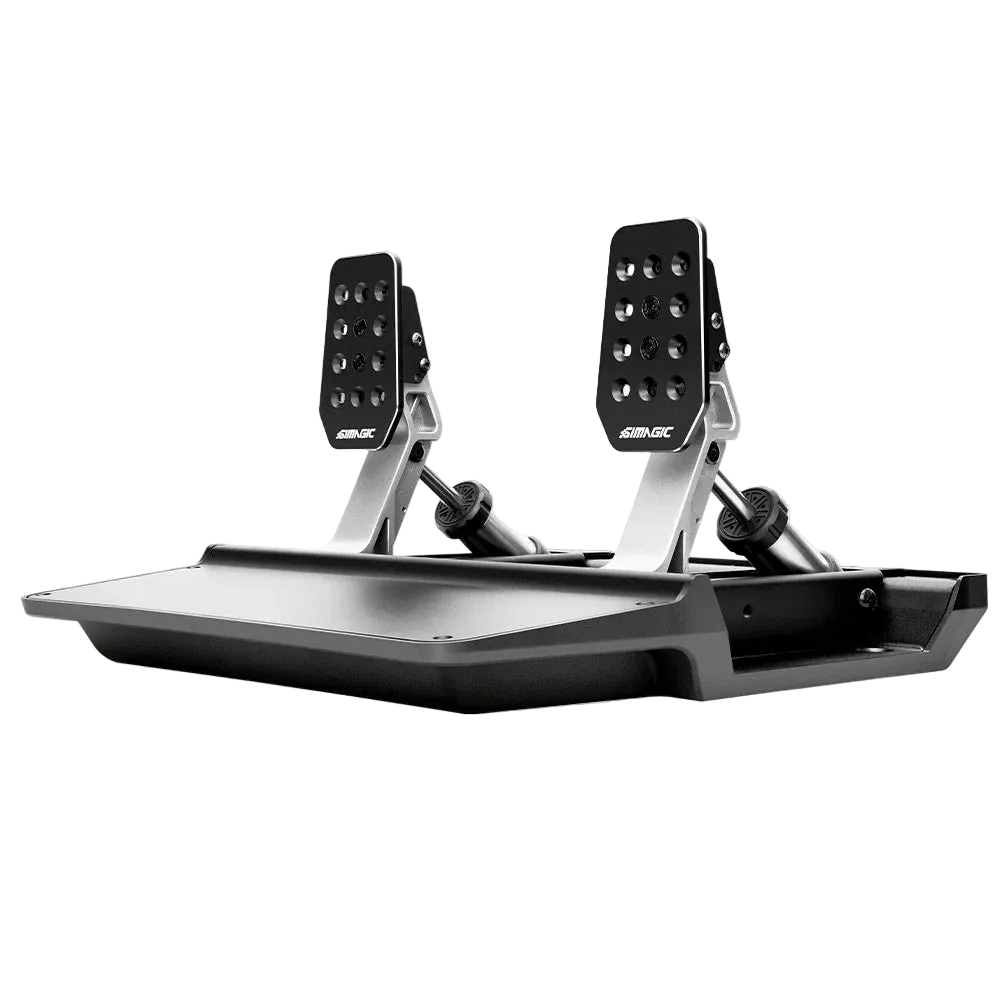

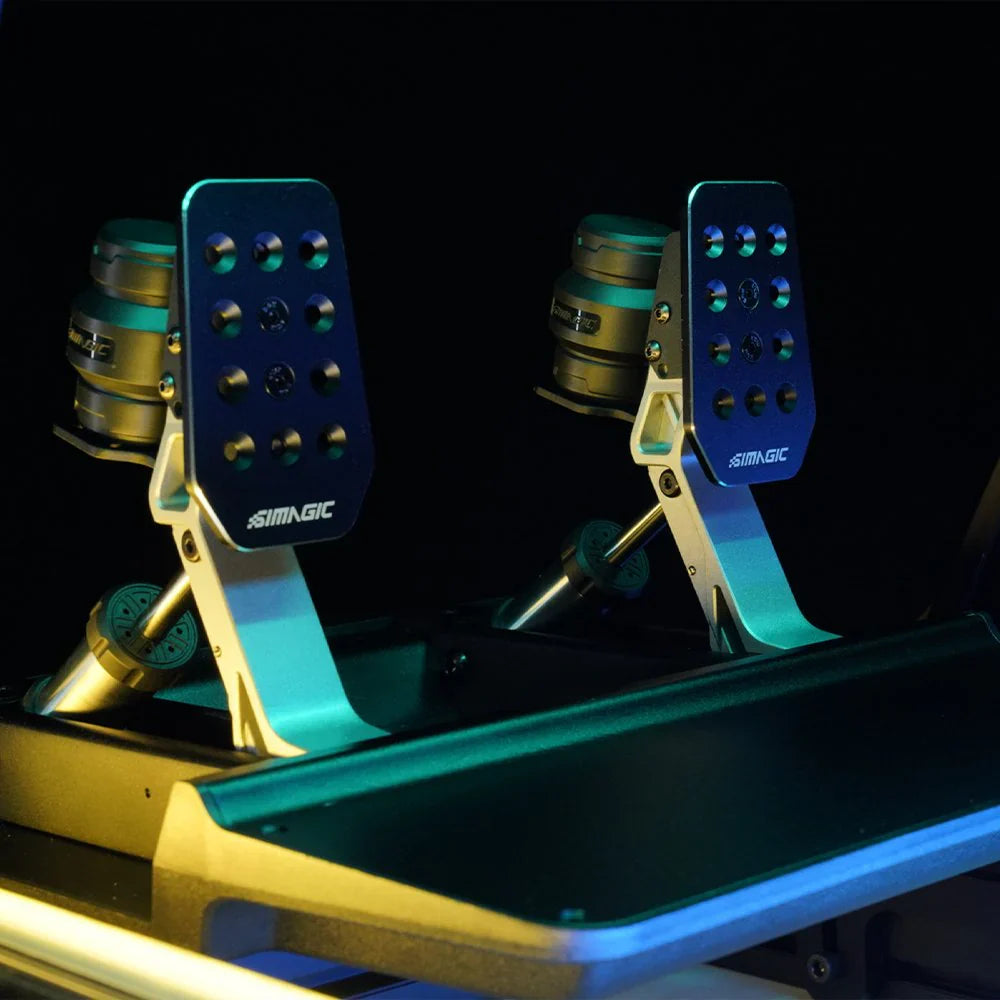

SIMAGIC P500 Dual Pedal Set

Loadcell pedals for beginners & advanced users

The SIMAGIC P500 is the new entry-level pedal set from Simagic that does not skimp on features despite its attractive price. Equipped with a 100 kg load cell on the brake and high-precision Hall sensors, it offers a professional driving feel and durability. Thanks to its design, it is suitable both for fixed mounting on the rig and – thanks to the wide base plate – for use under the desk.

Product highlights

• Hybrid sensors: 100 kg load cell sensor on the brake for pressure-based braking (realism) combined with Hall angle sensors for ultra-smooth throttle response.

• Robust design: Made from die-cast aluminum and CNC-milled components for maximum stability without flex.

• Adjustable resistance: Spring stiffness and pedal travel can be quickly adjusted – ideal for different racing classes.

• Ergonomic adjustment: The pedal faces are adjustable to find the optimal angle and distance for your feet with the SimRaceTEQ.

• Compatibility: Works on PC (USB) and can be connected directly to SIMAGIC wheelbases (SimPro Manager integration).

• Haptic Ready: Compatible with the optional P-HPR (Haptic Pedal Reactor) for vibration feedback (ABS, TC).

Technical data

Sensors

• Brake: 100 kg load cell + Hall angle sensor (dual sensor system for maximum precision).

• Throttle: Hall angle sensor (wear-free).

• Resolution: 12-bit (4096 steps).

Mechanics

• Material: Die-cast aluminum alloy & CNC parts.

• Adjustment options:

  • Pedal plate position (distance between pedals).

  • Pedal angle (inclination).

  • Spring force (hardness).

  • Pedal travel.

Dimensions & weight

• Dimensions: 330.4 mm × 355.1 mm × 209.3 mm.

• Weight: approx. 3.8 kg.

Scope of delivery

• SIMAGIC P500 Dual Pedal Set (gas & brake).

• Baseplate for stable mounting.

• Pedal control box.

• USB cable & connection cable to the base.

• Springs/elastomers for hardness adjustment.

• Mounting materials & tools.

• Note: Clutch pedal and haptic motors are sold separately.

Who is the P500 suitable for?

• Beginners & Upgraders: The perfect choice for switching from potentiometer pedals to load cell technology.

• Desk Racer: Thanks to the stable baseplate and optional wall bracket, also usable without a fixed rig.

• Value-for-Money Hunter: Offers top-class features (100kg LC, hall sensors, aluminum construction) at an entry-level price.
